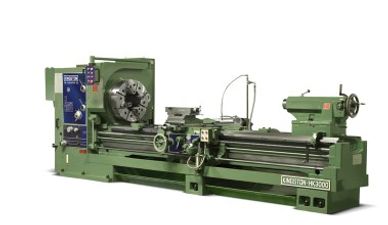

Manual Lathes

 17" Swing

• Bore: 2.25” (3.07″ Upgrade)
• Swing: 17”
• C.C.: 43” or 67”
• Spindle Nose: D1-6 (D1-8 w/ 3″ Bore)
• Main Motor: 7.5 HP

22" / 26" / 30" Swing

• Bore: 4.09”
• Swing: 22”, 26″, or 30″
• C.C.: 35” – 160″
• Spindle Nose: D1-8 (HD-22) / D1-11 (HD-26/30)
• Main Motor: 10 HP (HD-22) / 15 HP (HD-26/30)

 30" / 34" / 40" Swing

• Bore: 4.09”
• Swing: 30”, 34”, or 40”
• C.C.: 80” – 320”
• Spindle Nose: D1-11
• Main Motor: 20 HP

 Big Bore Lathe

• Bore: 7.09”, 9.25”, or 10.1″
• Swing: 34” or 40”
• C.C.: 80” – 280”
• Spindle Nose: A2-15
• Main Motor: 30 HP

Oil Country Lathes

• Bore: 12.5” or 14.8” (15.0″ upgrade)
• Swing: 30”, 34”, or 40”
• C.C.: 120” – 280”
• Spindle Nose: A2-20
• Main Motor: 20 HP with Mitsubishi Inverter

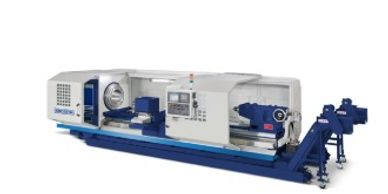

 Dual Turret Versatility

• Bore: 4.7″ or 7.3″
• Swing: 26″
• C.C.: 40″ – 160″
• 25 HP / 30 HP (30 min)
• V8 Front & H6 Rear Turret (14 Tool Positions)
• Fanuc 0iTF Plus Controller w/ Manual Guide i

Heavy Duty

• Bore: 7.3″, 10.1″, or 14.7″
• Swing: 35″ (39″, 43″ Optional)
• C.C.: 80″ — 240”
• 30 HP / 40 HP (30min)
• V8 Turret (H6 Rear Turret Optional)
• Fanuc 0iTF Plus Controller w/ Manual Guide i

 Heavy Duty

• Bore: 4.09”, 7.09”, 10.1”, 12.5”, or 14.8”
• Swing: 30″ (CX 12 only), 34″, or 40
• C.C.: 80″ — 240″
• V8 Turret, Opt. Rear Turret
• Manual Hand Wheels
• Box Way Cross Slide
• Fanuc 0iTF Plus Controller w/ Manual Guide i

 Large Swing Capacity

• Bore: 7.1″, 10.0″, or 14.7″
• Swing: 45″
• C.C.: 80″ — 240″
• 50 HP / 60 HP (30 min)
• 28.5″ Bed Width
• V8 Hydraulic Turret (H4 or H6 Optional)
• Fanuc 0iTF Controller w/ Manual Guide i

Ultra Heavy Duty

• Bore: 9.25″, 12.5″ or 14.7″
• Swing: 34″ or 40″
• H6 350 Turret with 3” Boring Bar Holders
• 28” Bed Width
• One-Piece Casting
• Box Way Cross Slide
• Fanuc 0iTF Controller w/ Manual Guide i

Large Swing Capacity

• Bore: 7.1″, 10.0″, or 14.7″
• Swing: 45″
• C.C.: 80″ — 240″
• 50 HP / 60 HP (30 min)
• 28.5″ Bed Width
• V8 Hydraulic Turret (H4 or H6 Optional)
• Fanuc 0iTF Controller w/ Manual Guide i

Extra Large Swing Capacity

• Bore: 7.1″, 10.0″, 14.7″, or 20.8″
• Swing: 59″ (67″ and higher available)
• Swing Over Cross Slide: 35.4″ standard
• C.C.: 80″ — 240″
• 50 HP / 60 HP (30 min)
• 39.4″ Bed Width
• V8 Hydraulic Turret
• Fanuc 0iTF Controller w/ Manual Guide i

29" and 33" Swing Slant Bed Lathes

• Bar Capacity: 3.54″
• Swing: 29.5″ (SPX 29), 33.4″ (SPX 33)
• C.C.: 28” – 120″
• V12 Hydraulic Turret
• Fully Programmable Tailstock
• Fanuc 0iTF with Manual Guide i
• 12″ 3-Jaw Hydraulic Chuck & Cylinder

Big Bore 35 and 40" Swing Slant Bed Lathe

• Bore: 5.1″, 7.1″, 8.0″, 9.25″, or 10.1″, 12.5", or 14.7"
• Swing: 35.4”, or 40.5"
• C.C.: 80” – 200″
• V12 Servo Turret
• Fully Programmable Tailstock
• Fanuc 0iTF with Manual Guide i
• 3-Jaw Hydraulic Chuck & Cylinder (up to 8.0″ bore)
